If you have dual channel receiver and trying to use as single channel. Found the problem i m using a dual receiver hot water and heating. Receiver lights and what they mean the receiver has lights on its front panel to indicate what it s doing.

generac 22kw generator wiring diagram gas club car headlight wiring diagram gauge wiring yamaha analog tachometer wiring diagram ford 12 volt ignition coil wiring diagram furnace fan relay wiring diagram gas ezgo txt wiring diagram flat wiring diagram for trailer lights fender stratocaster 5 way switch wiring diagram

Hive Dual Channel On A Combi Boiler Overclockers Uk Forums

Hive Dual Channel Receiver With Baxi Platinum Combi Boiler Diynot Forums

Hive Dual Channel Receiver With A Combi Boiler Diynot Forums

Hive And Central Heating Wiring Diynot Forums

Hive Multizone S Plan Wiring Diynot Forums

Hive Wiring Help Overclockers Uk Forums

2 brown into 2.

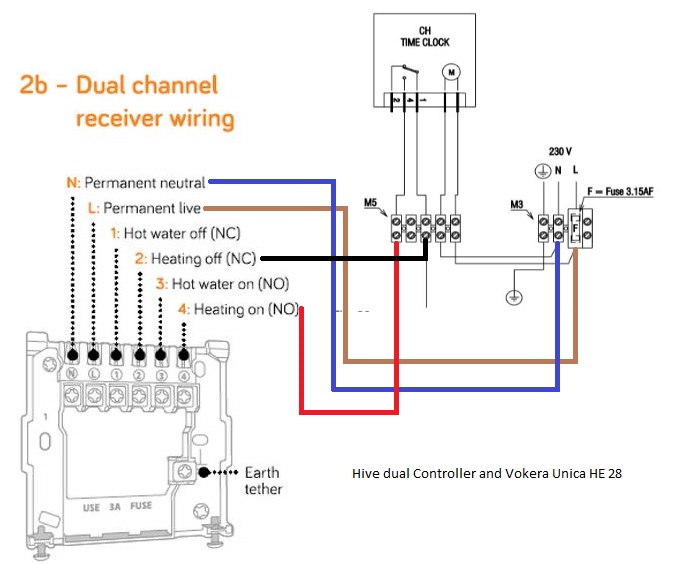

Hive dual channel receiver wiring diagram. On the back of the hive receivers there is a small wiring diagram and there was something similar in the existing unit i took off and with those two i was able to work out what wires should go where. 1 remove link from 1 2 at boiler. This is the wiring diagram for the hive receiver that will go next to the boiler but confusion reigns as it wants 4 wires i don t think it needs 2 and 4 but can t figure out which 4 wires from the current wires above. Installing the correct receiver bs7671 iee wiring regulations part p of the building regulations and any relevant technical operational procedures.

Hive to worcester bosch 28cdi wiring hive to worcester bosch 28cdi wiring. I used above guide for worcester 37cdi thanks. I have not install receiver against the wall on the pic as i am moving it closer to the boiler and want to ensure it works first. A single channel receiver has two lights status and central heating.

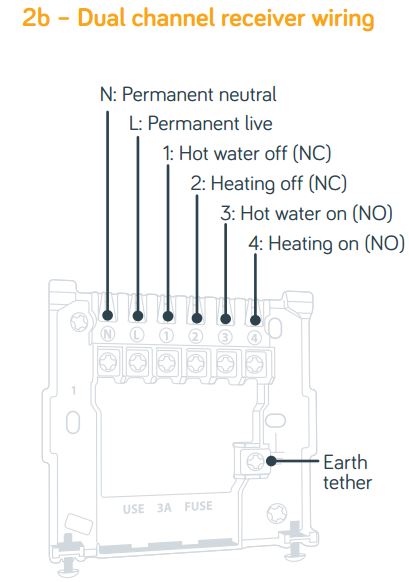

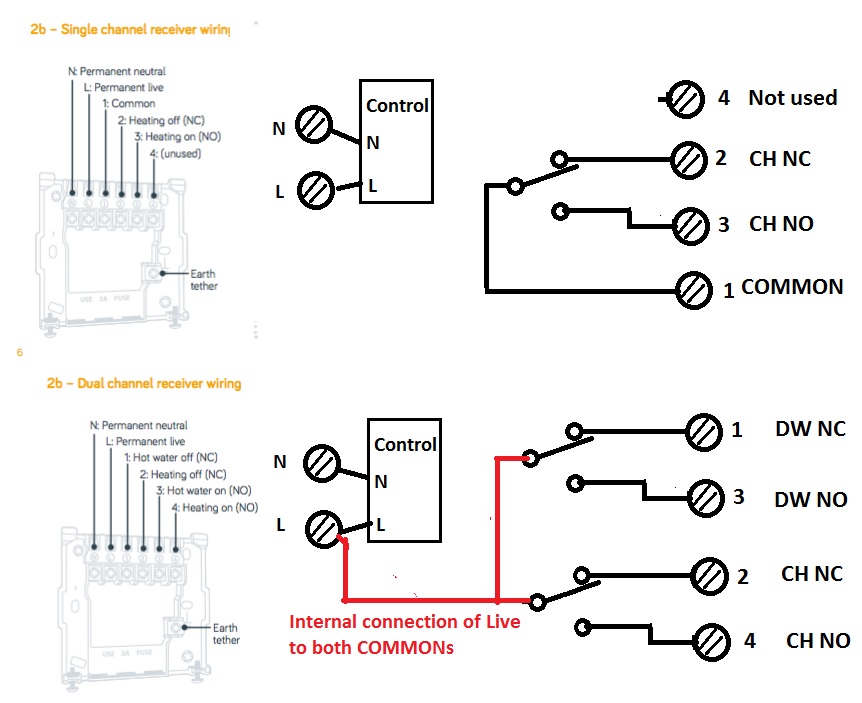

A dual channel receiver has an additional light for hot water. Ive attached pictures of my old thermostat and new receiver. So i was going to run a 3 core t e from the boiler to the receiver. Looking to wire up a hive receiver but never done one on a job before just finished 4 year apprentachip flat house bashing mainly so just want to check i m going to be doing it right before going ahead.

Dual channel the hive receiver is double insulated so doesn t receiver need an earth connection. I just fitted two hive receivers a two channel for heating and hot water and a single channel for underfloor heating in the kitchen. 99 direct from hive the diy active heating thermostat with the receiver box. The receiver is connected to the rest of the hive system and operating normally.

The dual channel uses mains so boiler for the dual has to be able to accept 230v call for heat trust. 5 dec 2017 at 20. I ve also i attached a pic of the existing wiring diagram for my thermostat and wiring for new receiver. So at boiler end.

This is the wiring diagram for the hive receiver that will go next to the for info the blue common and brown heating on wires have find support for hive active heating hive active lights the hive motion sensor and window or door sensor and the.
